VividCore RM1100
Remote Monitoring System
Highlights
- Monitors up to four CATV settop boxes
- Diagnose problems remotely without truck rolls
- Monitor multiple hub locations within your network at one time
- Expandable system: Add additional sites easily at any time
- Full HD video encoding

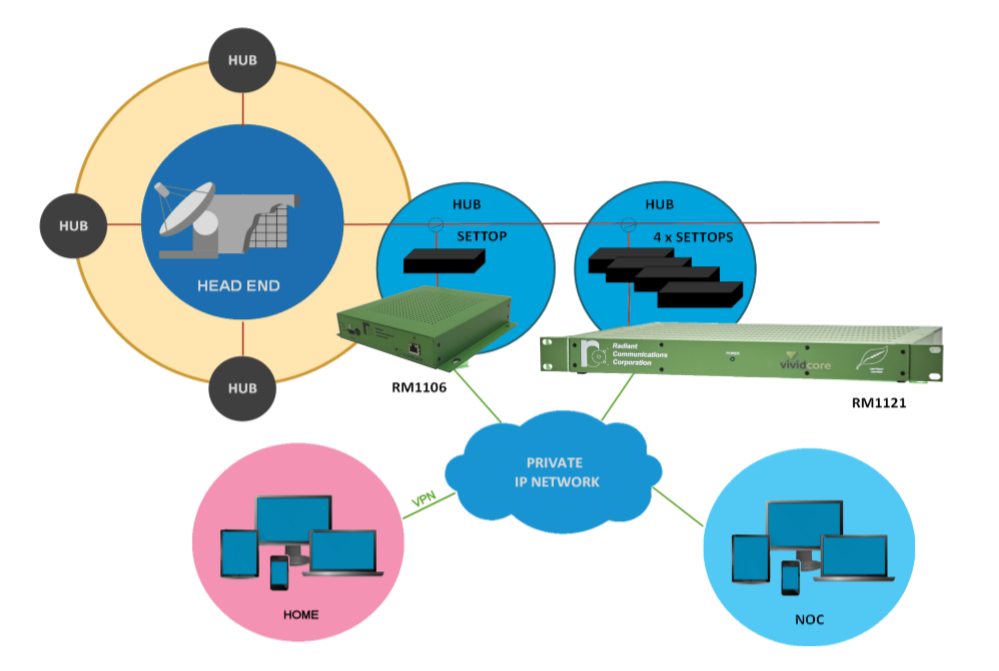

VividCore RM1100 Series remote monitoring from Radiant Communications Corporation offers the first flexible and cost-effective remote monitoring solution of your entire channel lineup over the internet or your existing local area network.
The RM1100 Series Remote Monitoring systems provide a way to remotely verify quality of experience of subscribers fed from remote unmanned hub sites.
The RM1100 can monitor up to four CATV boxes at remote hubs with multiple channel lineups.
Specifications
HDMI Input
4 x HDMI 1.3 Ports
IR Control Ports
4 x IR blaster ports
1 x USB port for IR learning
Network Port
1 x 10/100/1000 Base RJ45
Management
Inbound web based Encoder Management
Features
SNMP and Remote Syslog Monitoring, Email Notifications
Scheduled Recordings to a local storage media or network drive
Centralized Authorization via LDAP or Radius
Video and Audio
| h.264 AVC MP@L3.0 | 0.5-8Mbps |
|---|---|
| h.264 AVC MP@L4.2 | 2-24Mbps |
| h.264 AVC GOP | 10-240 FRAMES, IBBBBP |
| RESOLUTIONS | 480i, 720p, 1080i and 1080p |
| FRAMERATES | 24, 25, 29.97, 30, 59.94 and 60fps |
| CHROMA | 4:2:0 |
| AUDIO CODEC | AAC |
| SAMPLING RATE | 48kHz |
| BITRATE | 93-384kbps |
Environmental and Power
| Power | 35W @ 90 to 240VAC (DC Power Brick) |
|---|---|
| Comcast Power Supply | EPS-3 |
| Optional Power | 48VDC (1RU Only) |
| Weight | 5lb (1RU), 2lb (Can) |
| Operational Temp | 0° to 50° C |
| Storage Temp | -10° to 60° C |
| Dimensions | 1RU 17.0″ W x 13.0”D x 1.75″ H Can 8” W x 8” D x 1.75” H |
Ordering Information
| RM1121-HD | Full HD Remote Monitoring Encoder, 4 Inputs, 1RU |
|---|---|
| RM1106-HD | Full HD Remote Monitoring Encoder, Single Input, Can |
