VividCore RM8000
Video Monitoring Gateway

Highlights

  • Mux multiple ASI streams into one GigE stream
  • Cost effective, integrated, single box solution
  • Real Time Input and Output Statistics
  • Pid Filtering and Remapping
  • PCR Correction
  • Null Packets Removal and Stuffing
  • Jitter Free IP stream
  • PSI/SI Management System

VividCore RM8000 Multi Stream Video Monitoring and
Analysis Gateway is an integrated Appliance allowing
CATV, MSO’s and Broadcasters to perform real-time moni
toring, continuous capture and advanced analysis of their
video programming. When used with VividEdge Broadcast
Encoders and VividCore Remote Monitoring devices the
system allows capture and storage of multiple video
sources indexed by time/date and closed caption data if
available.

The VividCore RM8000 monitoring gateway has options for
advanced analysis. It provides automatic reporting of ad
queue events and EAS messaging. Specific set of work
flows allow the operator to export ad insertion, EAS and

Specifications

Management

1 x 1000BaseT Ethernet Interface

Web GUI

Stream Input

ISO/IEC 13818 SPTS/MPTS MPEG TS, 1000BaseT

SRT, UDP, RTP, RTSP, HLS and DASH

4 x 1000BaseT Ethernet Interface

SCTE Messaging Interface

1 x 1000BaseT Ethernet Interface

Internal Storage

480GB SSD Drive with option for remote backup

Clip export and reports to NAS and Cloud Storage Providers

Environmental and Power

Power  90W @ 90 to 240VAC (Internal Power)
Weight 5lb
Operational Temp 0° to 50° C
Storage Temp -10° to 60° C

Standard Features

Monitor and record audio and video from up to 8 streaming sources including VividCore RM1100 series and VividEdge VL4500 series.

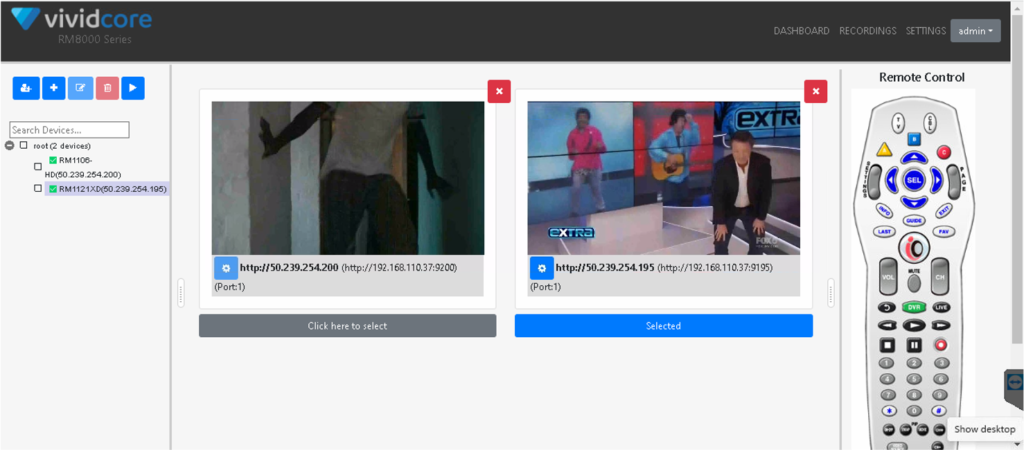

Ability to remotely control set tops. Continuous and scheduled capture and storage of TS or video and audio.

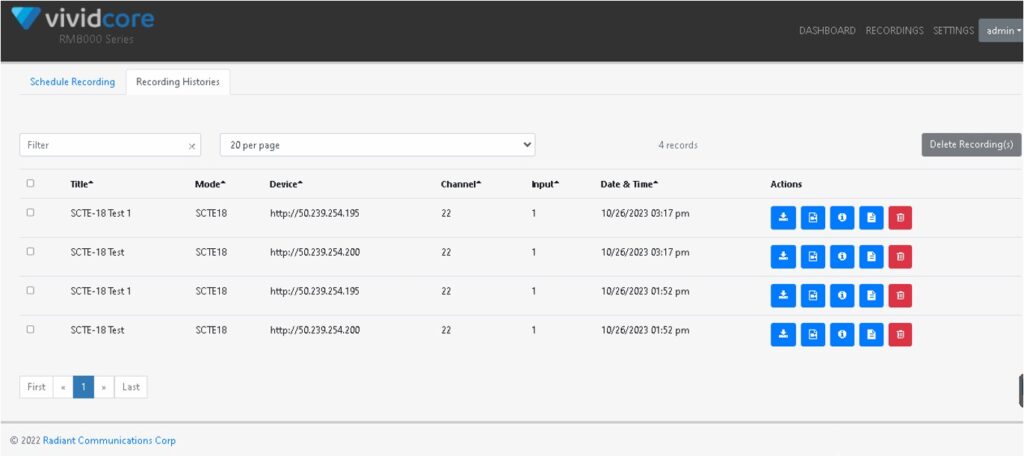

Ability to start playback from given date/time on single or multiple stream sources.

Ability to select, export and share a video clip.

SCTE Event Verification Option

Workflow for automatic EAS and Ad insertion, verification and reporting.

Reporting of ad queue events and EAS messaging, Ad insertion reports include detected adds periods by black screen, alignment with SCTE35 point, possible early or late start when compared to different region and excessive black screen.

EAS messaging report cover SCTE18 information, time of detection, actual video capture with beginning and end padding.

Ordering Information

RM8000
Video Monitoring Gateway for 8 streams with recording
RM8000-S
Video Monitoring Gateway with SCTE35 and SCTE18 event monitoring and verification
